Monty 5800WL
Wheel diameter 95 inch
Wheel width 59 inch
Chuck speed 4/8
Hydraulic pressure bar
Power supply 200 VAC 3Ph 60 Hz

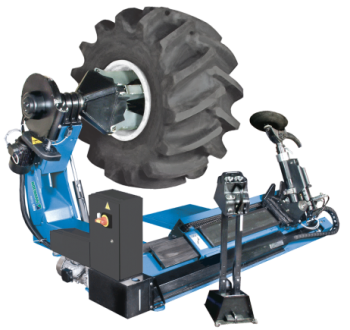

Hofmann Monty 5800WL
Extremely wide clamping range for rims of 4″ – 58″ without extensions, high bead breaking force of up to 3.8 t, accommodation of rim flanges of up to 40 mm thick, control console with switch for simultaneous control of two functions, automatic operation of mounting tool and preset tool carriage travel. Radio controlled operation.
Part Number:
MONTY5800WL
Extremely wide clamping range for rims of 4″ – 58″ without extensions
High bead breaking force of up to 3.8 t
Rugged design for intensive handling of wheels of up to 2000 kg and 2.5 m diameter
Lowering of chuck to 350 mm to facilitate accommodation of rims of small diameter
Long jaws to accommodate rims of high offset
Accommodation of rim flanges of up to 40 mm thick
Control console with switch for simultaneous control of two functions
Radio control
2 Chuck speeds to be preset by switch
Automatic operation of mounting tool and preset tool carriage travel
