Monty 3850

Monty 3850

For wheels type                               Road

Rim diameter no extensions            14” – 26”

Clamping axial orientation               horizontal

Chuck speed                                   1

Bead breaker type                           Disk

Mounting tool type                           Tool

Demounting tool type                      Fixed Disk / Tool

Tools tangential to the rim               No

Tool left/right travel                          Manual 3 positions

Tool rotation                                     Manual w/ lever

Tool positioning                               Manual

Hydraulic pump flow                        4,5

Hydraulic pressure                          160 bar

Integrated wheel lift                         No

Hydraulic motor                               1,5 kW

Chuck motor                                    1,8 kW

Power supply                                   230 VAC 1Ph 50/60 Hz

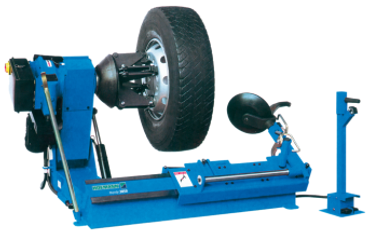

Hofmann Monty 3850

Electro-hydraulic drive, mobile control unit, bead breaker roll and mounting/demounting tool fitted on swing arm, safety valve on chuck prevents accidental unclamping of wheels.

Part Number:

M3850230

Electro-hydraulic drive

Mobile control unit

Positioning of wheel and tool within a wide accurate adjustment range

Infinitely self-centring universal hydraulic chuck

Bead breaker roll and mounting/demounting tool fitted on swing arm

Safety valve on chuck prevents accidental unclamping of wheels

Ergonomic operation owing to vertically adjustable control unit
