Monty 3650
For wheels type Road
Rim diameter no extensions 16″ – 22.5″
Clamping axial orientation horizontal
Chuck speed 1
Bead breaker type Roller + Roller / Tool
Mounting tool type Roller / Tool
Demounting tool type Roller / Tool
Tools tangential to the rim No
Tool left/right travel Manual 2 positions, chuck adjustable
Tool rotation Manual w/ pin
Tool positioning Manual
Hydraulic pump flow 3
Hydraulic pressure 160 bar
Integrated wheel lift No
Hydraulic motor 0.75 kW
Chuck motor 0.75 kW
Power supply 230 VAC 1Ph 50/60 Hz
Max footprint dimensions 1270 x 1290 x 1100 mm
Net weight lbs 728 lbs

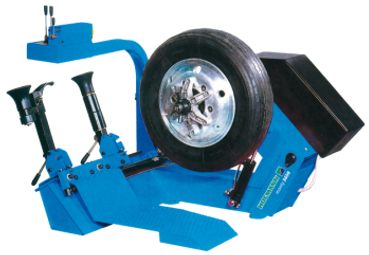

Hofmann Monty 3650
Access ramp for easy loading of the tire changer, two rollers for bead breaking and tire changing allow quick operation, easy control via integrated control console, clamping of wheel by its center bore via cone and wing nut.
Part Number:
M3650230
Access ramp for easy loading of the tire changer
Two rollers for bead breaking and tire changing allow quick operation. Both the inner and outer beads are demounted in a single process.
The innovative design of monty 3650 ensures that the rollers are always centered relative to the wheel.
Wheels, rollers and control console are so positioned relative to each other to make retreading of tires extremely convenient.
Easy control via integrated control console
Clamping of wheel by its center bore via cone and wing nut
