Monty 1620

Monty 1620

Monty 1620

​

Tower technology                             Swing arm

Clamping System                             Turntable & clamping jaws

Clamping range                               10″ – 24″

Outside clamping range                   10″ – 21″

Inside clamping range                     12″ – 24″

Easymont pro                                  Optional

Capability                                         70 kg

Power supply                                   115 VAC 1Ph 50/60 Hz

Dimensions LxWxH                          72″ x 68″ x 85″

Weight                                              600 lbs

​

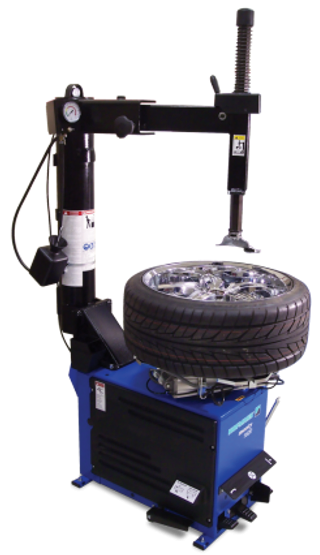

Hofmann Monty 1620

The Hofmann® monty® 1620 is designed for high-volume tire shops, multi-bay repair shops and car dealerships. The monty 1620 swing-arm tire changer features 21″ outer-wheel clamping standard (26″ with optional adapters), and accommodates tire diameters up to 50″ and a wheel width of 15″. It can also be upgraded by adding Hofmann’s patented EasyMont Pro, aiding in single-operator mounting/demounting of extra-stiff, low-profile, high-performance and run-flat tires.

​

Part Number:

monty1620

​

Accommodates Large Wheel & Tire Assemblies

Allowing for a tire diameter of 50″ and an outer-wheel diameter of 21″, the monty 1620 can handle wheel and tire assemblies found on cars and light trucks​

Dual Wheel Clamping Cylinders

Dual pneumatic clamping cylinders control all four clamping jaws, eliminating damage to wheels due to slippage

Four-Jaw Clamping Chuck

Self-centering and clamps wheels with either 24″ inner or 21″ outer diameter

Multi-Position Bead Breaker

6,000 lbs of power at the bead shovel and a range of up to 15 3/8″ wide. The two-stage pneumatic cylinder provides precise power and can be toggled with the foot pedal as needed, making both the stiffest and the softest sidewalls a snap

Powerful Tire Inflation System

Powerful air blast operated by the foot pedal. Each moveable jaw is precisely set to the exact position under the wheel to seal the tire bead

Built To Last

Heavy, solid 1/2″ thick steel clamping table. Rugged steel-reinforced chassis. Rust-proof air cylinders and valves. Compressed air lubricator and regulator on-board

​

Upgradeable

EasyMont Pro features a three-piece design with a top roller, pressing foot and lifting disc. Each piece provides a specialized function that assists a single operator in mounting/demounting low-profile and high-performance tires

Optional Wheel Protectors

Protects even the most expensive alloy wheels and provides extra insurance with ultimate wheel protection so that even the most expensive wheels can be changed without an additional expense
