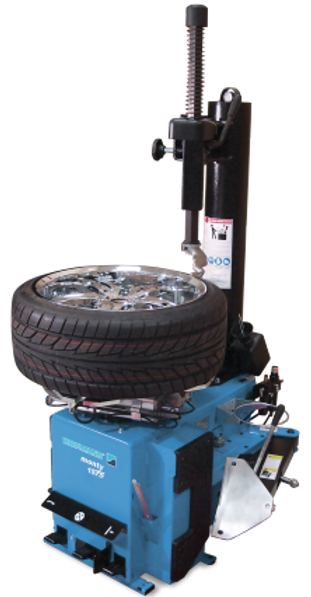

Hofmann Monty 1575

The Hofmann® monty® 1575 is ideal for shops looking for great value without sacrificing productivity. It includes wheel protectors so even the most expensive wheels can be changed without additional expense and fear of cosmetic damage. The monty 1575 can also be upgraded by adding Hofmann’s patented EasyMont Pro, aiding in single-operator mounting/demounting of extra-stiff, low-profile, high performance and run-flat tires.

​

Part Number:

monty1575

​

Accommodates Large Wheel & Tire Assemblies

Allowing for a tire diameter of 40″ (1016 mm) and outer-wheel diameters of 21″ (530 mm), the monty 1575 can handle wheel and tire assemblies found on cars and light trucks

Dual Wheel Clamping Cylinders

Dual pneumatic clamping cylinders control all four clamping jaws, eliminating damage to wheels due to slippage

Adjustable Four-Jaw Clamping Chuck

Self-centering jaw clamps wheels from either 26″ inner or 24″ outer diameter

Powerful Two-Stage Bead Breaker

6,000 lbs (2,722 kg) of power at the bead shovel and a range of up to 14″ (356 mm) wide. The two-stage pneumatic cylinder provides precise power and can be toggled with the foot pedal as needed. Both the stiffest and the softest sidewalls are a snap

Powerful Tire Inflation System

Powerful air blast operated by the foot pedal. Each movable jaw is precisely set to the exact position under the wheel to seal the tire bead

Upgrade With Optional Easymont Pro

Easymont Pro features a three-piece design with a top roller, pressing foot and lifting disc. Each piece provides a specialized function that assists a single operator in mounting/demounting low-profiles and high performance tires

​

Tower technology                             Swing arm

Overall Wheel Clamping Diameter  10″-26″ (25-66 cm)

Inner Wheel Clamping Diameter     12″-26″ (30-66 cm)

Outer Wheel Clamping Diameter    10″-24″ (25-61 cm)

Bead Breaker Range                       3″-13″ (7.6-33 cm)

Bead Loosening Power                    6,000 lbs (2,722 kg)

Max Wheel Width                            13″ (33 cm)

Max Outer Tire Diameter                 40″ (101.6 cm)

Shipping Weight                              550 lbs (249.5 kg)

Power Requirements                       120V 1Ph 60Hz

​
