Geoliner 678
Wheel Size (AC200) 12″ – 24″
Tire Size (AC400) 19″ – 39″
Power supply 115 VAC 1Ph 50/60 Hz
Track width 48″ – 96″
Wheel base 79″ – 180″

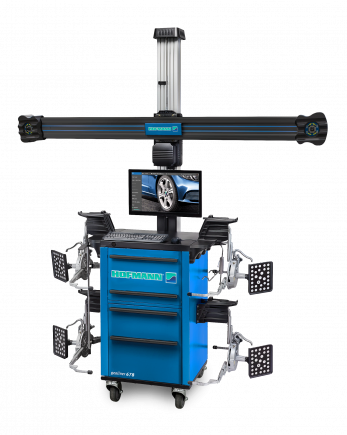

Hofmann Geoliner 678
Introducing the latest addition to the Hofmann® Imaging Alignment family – the geoliner® 678 Imaging Wheel Aligner.
Designed with the technician in mind, this wheel aligner offers advanced technology with the most intuitive software to give any alignment technician the tools needed for an easy and fast alignment.
Part Number:
With AC400 Clamps, VIN Reader & Ethos Edge – EEWA715TBEE3
With AC400 Clamps & VIN Reader – EEWA715TBV3
With AC200 Clamps, VIN Reader & Ethos Edge – EEWA715THEE3
With AC200 Clamps & VIN Reader – EEWA715THV3
Fast & Easy to Use
New, intuitive software is designed together with technicians to provide the core alignment functions, only one click away
Complete alignment process with minimal steps resulting in more alignments per day
Compensate, Warn, Alert diagnostic system feature is for detecting and, where possible, compensating errors without interrupting the alignment process
Advanced Features
Automatic Tracking – Cameras follow the vehicle as it is raised and lowered reducing time spent at the console
Video Speed Camera – Allows faster compensation reducing wait time
Live Readings – No need to remeasure
Intelligent Software Tools
EZ-Toe – Allows adjustment of the critical Front Individual Toe without locking the steering column resulting in a level steering wheel
Rolling Radius – Checks for mismatched tire sizes, alerting possible mechanical failure (AWD)
Cross Diagonal – Checks for vehicle structural damage alerting possible additional repair
Adjustment Assistance – Shows where the adjustments are on the vehicle
AC400 Touchless Wheel Clamps
Touchless Design – Provides secure clamping with no wheel contact
Fast Setup – Get your readings faster. No adapters required!
Cloud Services & Online Report Management
Provides quick access to vehicle specifications and repair information, ADAS guide, technical service bulletins, recall information, TPMS information, sensor reset information, firmware updates and much more
Fast and easy software and vehicle specification updates
Access, print, email or text aligner reports
Body Shop Vehicle Check
Combined measurements help discover hidden damage before starting the alignment process
Measurements include: cross diagonal, vehicle track width and wheel base, front & rear set back, and axle offset
Specialized reports provide clear communication to body shop partners
Standard Accessories
Wheel Clamps
Brake Pedal Depressor
Color Inkjet Printer
Steering Wheel Holder
Two Wheel Chocks
