Geodyna 8200

Geodyna 8200

Motorized                         Yes

Wheel clamping               Power Clamp

Diameter of shaft             40 mm

Measuring speed             < 200 rpm

Balancing accuracy         0.035 oz

Angular resolution           ± 0,35°

Length of shaft                225 mm

Start/Stop balance time  4 s

Rim diameter range        8″ – 32″

Offset range                    1″ – 20″

Rim width range              1″ – 20″

Max wheel diameter       42 inch

Max. wheel weight          154 lbs

Input power (amperage) 4 A

Input power (VAC)           230 VAC 1Ph 50/60 Hz

Dimensions LxWxH        76.4″ x 40.2″ x 61.8″

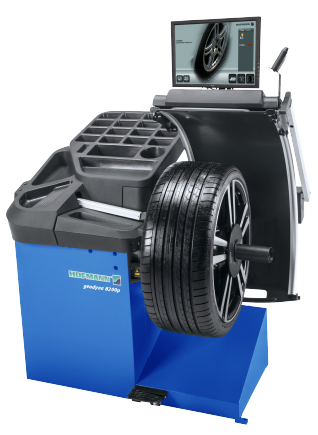

Hofmann Geodyna 8200

A video wheel balancer for cars and light trucks, the geodyna® 8200 series feature fully automatic data entry via scanner and Smart Sonar, the Power Clamp electromechanical clamping system, the pinpoint easyWEIGHT™ laser and touchscreen interface for unequaled productivity and unbeatable performance.

Part Number:

EEWB766BE5

Radial Run-Out

High-accuracy laser technology measures degree of deviation from a perfect circle, enabling match-mounting to improve roundness and reduce geometric vibrations.

Power Clamp

The patented automatic power clamp electromechanically clamps the wheel accurately with a constant force, reducing the opportunity for chasing weight.

User Interface

Highly intuitive touchscreen user interface allows for rapid, time-saving selection of cycle modes: fully automatic with spoke detection, fast automatic without spoke detection and manual.

Automatic Spoke Detection

Scanner automatically detects number and position of rim spokes. Provides easy recall of split weight mode for hidden adhesive weights by simply pressing an icon on the screen.

Stop In Position

Automatically indexes the wheel to correction position depending on balancing.

easyWEIGHT

Pinpoint red laser provides fast, accurate, easy positioning of adhesive weights on the wheel, identifying exact weight placement locations for increased accuracy and productivity.

geodata Arm

A unique and patented alternative to easyWeight for the positioning of adhesive weights.

Rim Lighting

High-brightness LED lighting system allows for more accurate acquisition of rim dimensions, facilitates rim cleaning and weight positioning.

Telescopic Wheel Guard

Patented ergonomic wheel guard saves space in the shop while keeping the handle positioned at a comfortable height.
