Geodyna 7600 P
Motorized Yes
Wheel clamping Power Clamp
Diameter of shaft 40 mm
Measuring speed < 200 rpm
Balancing accuracy 0.035 oz
Angular resolution ± 0,35°
Length of shaft 225 mm
Start/Stop balance time 4.5 s
Rim diameter range 8″ – 32″
Offset range 1″ – 20″
Rim width range 1″ – 20″
Max wheel diameter 42 inch
Max. wheel weight 154 lbs
Input power (amperage) 1.1 A
Input power (VAC) 230 VAC 1Ph 50/60 Hz
Dimensions LxWxH 54.5″ x 34.6″ x 77.2″

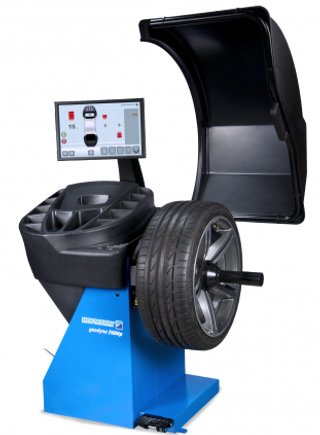

Hofmann Geodyna 7600 P
The wheel balancer for tire shops, car dealerships and garages with medium to high tire service volume: with touchscreen monitor and easyWEIGHT pinpoint indicator light – An accurate, fast and easy solution to position adhesive weights on the wheel.
Part Number:
EEWB765AP
Intuitive User Interface
New touchscreen, user-friendly interface on a flat panel, resistive touch display. Fast and intuitive selection of the cycle modes.
easyWEIGHT
Pinpoint indicator light – the accurate, fast and easy solution to position adhesive weight on the wheel.
Power Clamp
The electromechanical power clamp always clamps the wheel accurately with a constant force, which is most important for every balancing operation.
Data Entry
The Smart Sonar automatically detects rim width and the measuring run is started as soon as the wheel guard has been completely lowered. 30% time savings compared to manual input.
VPM Measurement Technique
The geodyna® 7600 series comes with the patented Virtual Plane Measurement (VPM) technique which ensures accurate balancing results, while being insensitive to ambient conditions
