Geodyna 7400 L

Geodyna 7400 L

Motorized                         Yes

Wheel clamping               QuickNut

Diameter of shaft             40 mm

Measuring speed             < 200 rpm

Balancing accuracy         0.035 oz

Angular resolution           ± 0,35°

Length of shaft                225 mm

Rim diameter range        8″ – 32″

Offset range                    1″ – 20″

Rim width range              1″ – 20″

Max wheel diameter       42 inch

Max. wheel weight          154 lbs

Input power (VAC)           115 VAC 1Ph 50/60 Hz

Dimensions LxWxH        54.5″ x 34.6″ x 77.2″

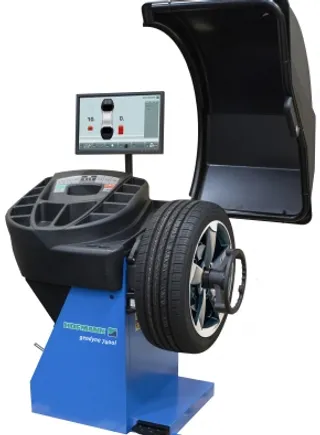

Hofmann Geodyna 7400 L

Unparalleled speed and accuracy, with non-contact rim width acquisition via smartSonar, exact weight placement via the easyWEIGHT pinpoint laser, and a 19″ LCD monitor featuring step-by-step video instructions and an intuitive user interface.

Part Number:

EEWB764AL

easyWEIGHT

Pinpoint indicator light offers an accurate, fast and easy solution to position adhesive weight on the wheel

Accurate and Quick Clamping

With the included cones or the optional stud-hold flange accessory, clamping is fast and easy

Short Balancing Cycle

The geodyna 7400l is equipped with a semi-automatic data entry for rim diameter and offset

smartSonar automatically detects rim width and the measurement cycle is started as soon as the wheel guard has been completely lowered

Intuitive Interface

User-friendly interface where all functions are clearly marked with picture icons

Large digits for the amount of the balance weight and bright indicators for weight position

Fast and intuitive selection of the cycle modes
