Geodyna 7340 P

Geodyna 7340 P

Motorized                         Yes

Wheel clamping               PowerClamp

Diameter of shaft             40 mm

Measuring speed             < 200 rpm

Balancing accuracy         0.035 oz

Angular resolution           ± 0,35°

Length of shaft                225 mm

Rim diameter range        8″ – 32″

Offset range                    1″ – 20″

Rim width range              1″ – 20″

Max wheel diameter       42 inch

Max. wheel weight          154 lbs

Input power (VAC)          230 VAC 1Ph 50/60 Hz

Dimensions LxWxH        54″ x 35″ x 66″

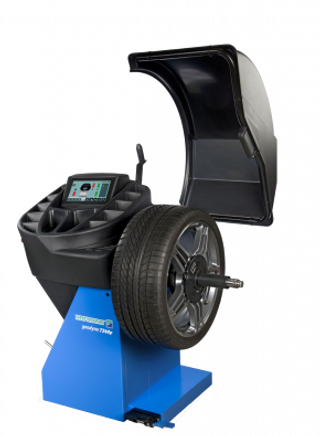

Hofmann Geodyna 7340 P

The geodyna® 7340 wheel balancer is the ideal solution for independent tire shops, garages and dealers; offering high performance, small physical footprint and accurate balancing results in the first run. Our geoTOUCH™ technology provides intuitive operation with a wide, heavy-duty touchscreen for ease-of-use and improved ergonomics.

Part Number:

EEWB774APE11

geoTOUCH™

Intuitive operation given by the wide screen, large digits for the amount of the balance weight and bright indicators for the weight position. Ergonomics and ease of use with touchscreen user interface.

Patented Power Clamp

Electromechanicaly clamps the wheel accurately with a constant force, reducing the opportunity for chasing weight.

easyWEIGHT

Pinpoint indicator light offers an accurate, fast and easy solution to position adhesive weight on the wheel

Smart Sonar™

Automatic, non-contact rim width acquisition delivers greater accuracy and ease-of-use for a 30% savings in a complete process when compared to manual operation.

easyALU™

Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.

QuickBAL™

30% reduced cycle time, less than 4.5 seconds, maintaining the same high accuracy.

Multiple Users

Two operators can operate with the balancer simultaneously and quickly recall their rim dimensions.

Included Accessories:

Four Cone Kit (EAK0309J28A)

Weight Pliers (00058839000)

Accessory Kit for Power Clamp (EAA0307G54A)
