Geodyna 7200 S
Motorized Yes
Wheel clamping QuickNut
Diameter of shaft 40 mm
Measuring speed < 200 rpm
Balancing accuracy 0.035 oz
Angular resolution ± 0,35°
Length of shaft 225 mm
Rim diameter range 8″ – 32″
Offset range 1″ – 20″
Rim width range 1″ – 20″
Max wheel diameter 42 inch
Max. wheel weight 154 lbs
Input power (VAC) 230 VAC 1Ph 50/60 Hz
Dimensions LxWxH 40″ x 30″ x 72″

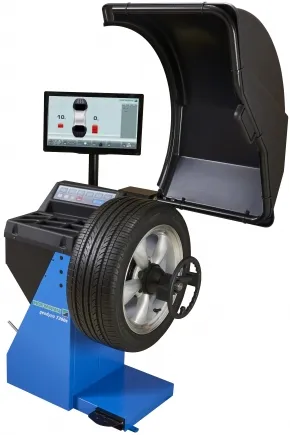

Hofmann Geodyna 7200 S
The geodyna® 7200s High Performance Wheel Balancing System is ideal for all shops – small footprint complimented by the video display provides high-end features in a compact design. In under ten seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location. The fast spin cycle provides accurate measurement with minimum cycles for fast results
Part Number:
EEWB746AS
Ideal for all shops – small footprint complimented by the video display provides high-end features in a compact design
In under ten seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location
The fast spin cycle provides accurate measurement with minimum cycles for fast results
smartSonar simplifies parameter entry
Patented Virtual Plain Imaging (VPI) for precise measuring
Hidden weight mode
Automatic braking of the wheel after measurement
Pedal operated main shaft lock
Tire and wheel optimization program
Compact dimensions – for installation close to a wall
