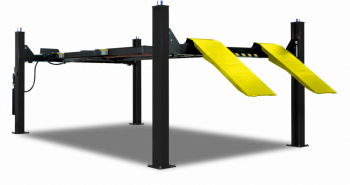

Hofmann 18k 4 Post

Hofmann’s 4-Post Alignment Lift offers 18,000 lbs of lifting capability and a lifting system that provides for high-wear resistance and a smooth gliding operation. The 18k 4-Post Alignment Lift features 21 positions for maximum flexibility.

​

Part Number:

FPA18210

​

Alignment level at twenty positions

24” (60.96cm) Pro-Style decks for wide-track vehicles and no deck adjustment

High performance 9/16” Ø, 6 x 37 lifting cables provide durability and added safety

Larger 8” pulleys with high performance fiber wound bushings for less wear and longer cable life

Dura-Glide lifting system integrates low wear, ultra high molecular weight polyethylene glide blocks to ensure long term alignment accuracy and smooth operations

Large profile columns have extra internal reinforced forms to spread and support the load

Built in anti-sway system

Hidden lifting cylinder mount under the runway adds accessibility and is protected from vehicle damage

Hydraulic protection with pressure compensating flow control and velocity fuse check system

65” full floating rear slip plates

Stainless air lock release cylinders for each column

Long 50” approach ramps provide gentle 10° drive-on angle for lower profile vehicles

Filter/Regulator/Lubricator (FRL) protects air systems

Certified and approved to the current ANSI/ALI lift standard
