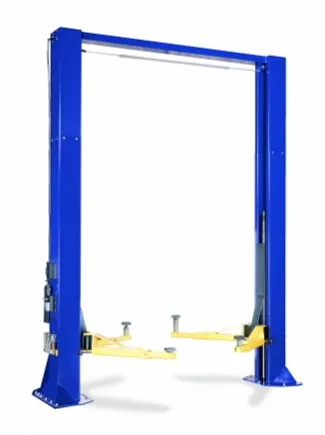

Hofmann 15k 2 Post

The 15k Two-Post lift features low profile arms, single point air actuated lock release, oversized steel pulleys, 60″ lifting carriage, padded overhead shut off bar and adapter accessories. Standard height and extended height models available.

Part Number:

EELR739A

15,000 lbs of heavy-duty lifting power

Symmetrical lifting with heavy-duty arm restraint system

Single point air actuated safety lock release – allows technician to disengage both columns simultaneously

Tall 60″ lifting carriages balance the long reaching 62″ lift arms, optimizing load disbursement in the column

Standard combination stack screw pads accommodate a wide range of manufacturers’ recommended vehicle pick up points

Oversized steel pulley reduces internal stress on equalization cables and provides increased durability

Padded overhead shut off system prevents vehicle damage from being raised too high

Certified to the ANSI/ALI ALCTV:2011 automotive lift standard

Capacity                                      15000 lbs

Lifting times                                 60 s

Drive-through width                     104.25 inch

Power supply                               230 VAC 1Ph 50/60 Hz

Distance between columns         119.875 inch

Minimum ceiling height               176 inch

Overall Width                              154.75 inch
