12k Scissor

12k Scissor

Capacity                                      12000 lbs

Lifting times                                 95 s

Lowering times                            45 s

Lifting height                                70 inch

Power supply                               230 VAC 1Ph 50/60 Hz

Weight                                         6615 lbs

Width Between Runways            40 inch

4 Wheel Alignment Wheelbase   89 – 158 inch

2 Wheel Alignment Wheelbase  165 inch

Console Dimensions DxWxH     16.5 x 14.125 x 45.75 inch

Air Supply Requirements            90 – 120 Psi

Service Wheelbase                    179 inch

Overall Width                              90 inch

Runway Width                            23 inch

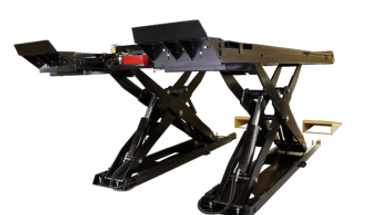

Hofmann 12k Scissor

The Hofmann® 12k Scissor Alignment Lift is a rugged 12,000 lb capacity scissor alignment lift with open front design that provides easy access to alignment service and calibration areas. “Pro-Style” 24″ wide runways provide easy drive-on for large vehicles. Hydraulic equalization and full support rear member deliver repeatable smooth level lifting. Flush mounted rear slip plates with heavy-duty encapsulated
bearings support and offer smooth movement to ease rear alignment adjustments.

Part Number:

EELR709A

Adjustable turnplate pocket depth ensures level positioning of turnplates

Expandable approach ramps provide multi tiered drive on approach to suit vehicle clearance and bay length. Extends up to 87″. Retracts into itself 35″ minimum

Each heavy duty rolling jack is easy to position and provides 6,000 lbs of wheelfree® lifting

Lifts straight up – no for or aft movement

Cross aligned heavy duty hydraulic cylinders maintain constant level lifting with supporting reinforcing rear mount cross member

Dual engaging twin interlocking mechanical safety racks with pneumatic release

Smooth lift operation with captured re-enforced glide blocks

Single point safety lock release system

Compact, enclosed control console

On-board Filter/Regulator/Lubricator (FRL) protects air systems

Powder coat finishing with non-skid runway platform surface

Certified to the current ANSI/ALI ALCTV:2011 lift standard

Flush mount model available (EELR724APKG)
