Capacity                                      12000 lbs

Lifting times                                 74 s

Lifting height                                78 inch

Power supply                               230 VAC 1Ph 50/60 Hz

Weight                                         3307 lbs

4 Wheel Alignment Wheelbase   88.5″ – 158.5″ inch

2 Wheel Alignment Wheelbase   168.8″ inch

Air Supply Requirements             90 – 120 Psi

Front Accessibility                       closed

Overall Length                             251.5 inch

Service Wheelbase                     183 inch

Overall Width                              134.8 inch

Runway Width                             20.6 inch

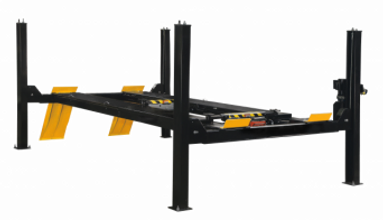

Hofmann 12k 4 Post

12k closed front, four-post alignment lifts give you 12,000 lbs of heavy-duty lifting capacity in a compact with no need for multiple lifts. Whether it is a micro car or a heavy-duty pickup, the 12k four post alignment lift has four wheel alignment capabilities that cover a full range of vehicle requirements.

Part Number:

EELR728A

20.5” wide “Pro-Style” runways save time when loading vehicles of narrow to wide track widths

Closed front design maintains a steady and shake free lift for advanced alignment equipment measurements

Ultra low-profile design allows easy-on approach angle for low profile vehicles

81.6” long rear slip plates — no need for repositioning of the front turnplates to accommodate for longer or shorter vehicles

Full floating, flush mounted rear slip plates use a Delrin ball style bearing assembly similar to our time-tested heavy-duty lift to ensure ease of vehicle movement, durability and reduced maintenance

Hydraulic cylinder mounted underneath runway

Industry proven, brake formed front columns and traverse beam design spreads critical load forces over longer/larger supporting areas to ensure alignment accuracy

Locking ladders mount through the traverse beams to ensure safety lock engagement

Filter / Regulator / Lubricator (FRL) provides a clean and lubricated air supply to the lift and jack systems; improving reliability and reducing the need for maintenance

Slack cable support system to keep cables from hanging when the lift is on the locks

Textured approach ramps for positive vehicle traction
